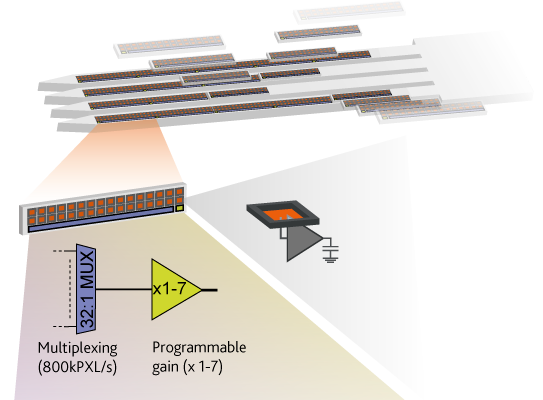

The SiNAPS Concept
Advantages
-
Modular circuit architecture
rapid design of probes with different layouts (single-/multi-shaft) -
Versatile fabrication flow
low-cost prototyping of CMOS-probes -
Compact and scalable devices
front-end circuits in-pixel avoid needs of large probe bases and allow >80 channels/mm2 of total device area.
Modular circuit architecture
different CMOS-probe layouts for in vivo electrophysiology
Active electrode-pixel
amplifiers and filters underneath each electrode
Sub-millisecond read-out circuits
On-probe addressing and time-division multiplexing circuits for whole array read-outs of thousands of electrodes at 25 ksample/s
Concept
Technical Specifications
One architecture, multiple layouts
Single Shank
Amplifier | In-pixel (DC-input)
|
Eletrode Size | 20 x 20 µm² |
Eletrode Pitch | 28 µm |
Sampling Frequency | up to 25 kHz/channel |
Shank (L•W•T) | 6.5 • 10³ x 120 x 30 µm³ |
Base (L•W) | 1.7 x 1.12 mm² |
Number of shanks | 1 |
Shank’ Separation | NA |
Electrode/Channels | 512/512 |
RMS noise | 7.5 µV |
Power Consumption | <6 µW/electrode-pixel |
Electrode Material | Pt/Au |

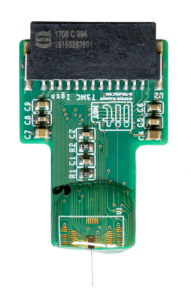

Multi Shank
Amplifier | In-pixel (DC-input)
|
Eletrode Size | 15 x 15 µm² |
Eletrode Pitch | 28 µm |
Sampling Frequency | up to 25 kHz/channel |
Shank (L•W•T) | 5 • 10³ x 80 x 30 µm³ |
Base (L•W) | 3.5 x 3 mm² |
Number of shanks | 4 |
Shank’ Separation | 560 µm |
Electrode/Channels | 1024/1024 |
RMS noise | 6.5 µV |
Power Consumption | <6 µW/electrode-pixel |
Electrode Material | Pt/Au |

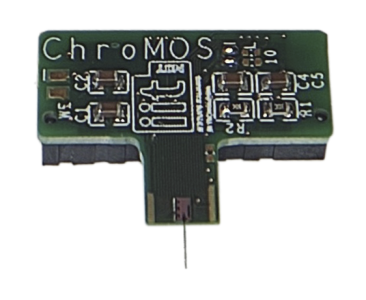

ChroMOS
Amplifier | In-pixel (DC-input)
|
Eletrode Size | ø 10 µm |
Eletrode Pitch | 29.5 µm inside module and 90 µm between modules (modules of 8 electrodes) |
Sampling Frequency | up to 25 kHz/channel |
Shank (L•W•T) | 4 x 10³ x 26 x 20 µm³ |
Base (L•W) | 1 x 2 mm2 |
Number of shanks | 1 |
Shank’ Separation | N/A |
Electrode/Channels | 64/64 |
RMS noise | 6.5 µV |
Power Consumption | <6 µW/electrode-pixel |
Electrode Material | Pt/Au |

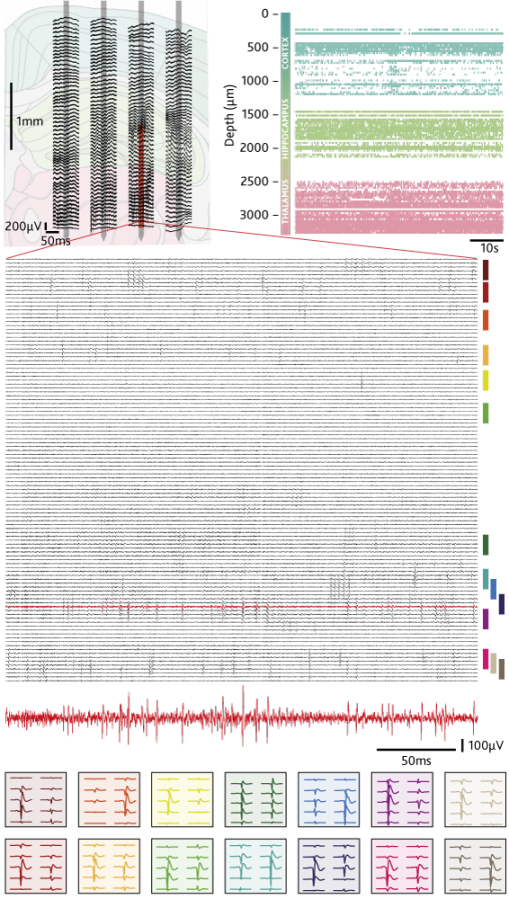

Recorded Data

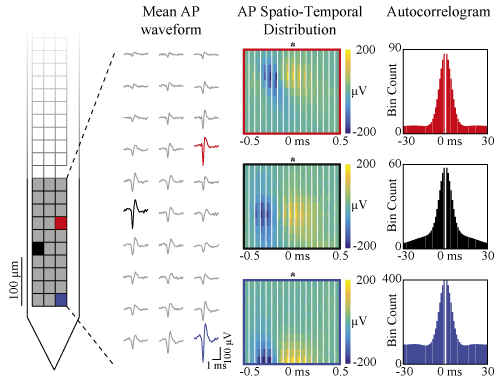

Example of in vivo full-band neural recordings collected from SiNAPS single and multi-shank probes implanted in rodents' brain. The raw neural traces are filtered in the LFP (1-300 Hz) and AP (300-5000 Hz) frequency bands and spiking activity is subsequently isolated and extracted.
Thanks to A.Sirota (LMU) and A.Jackson (Newcastle University) for pilot experiments.
